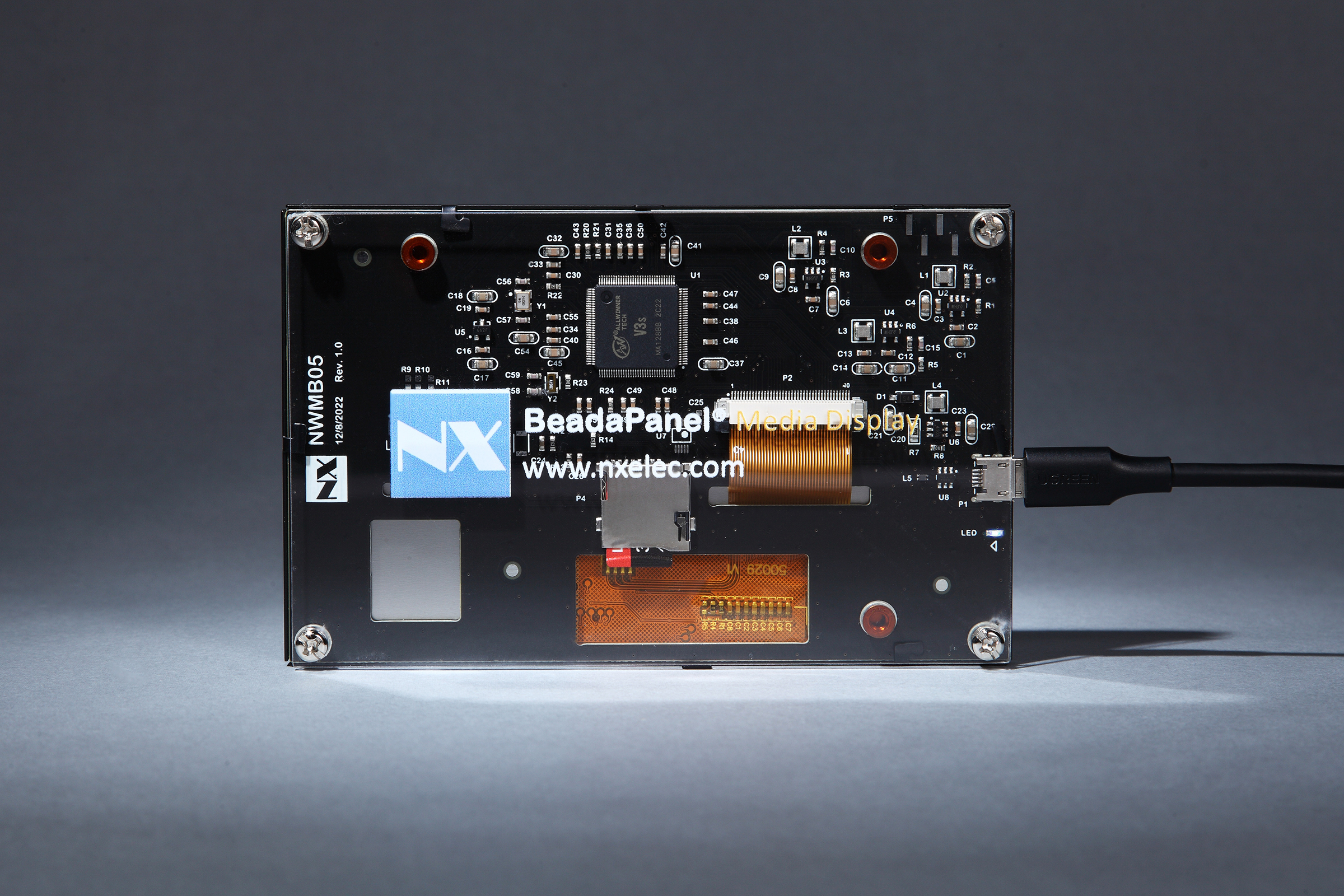

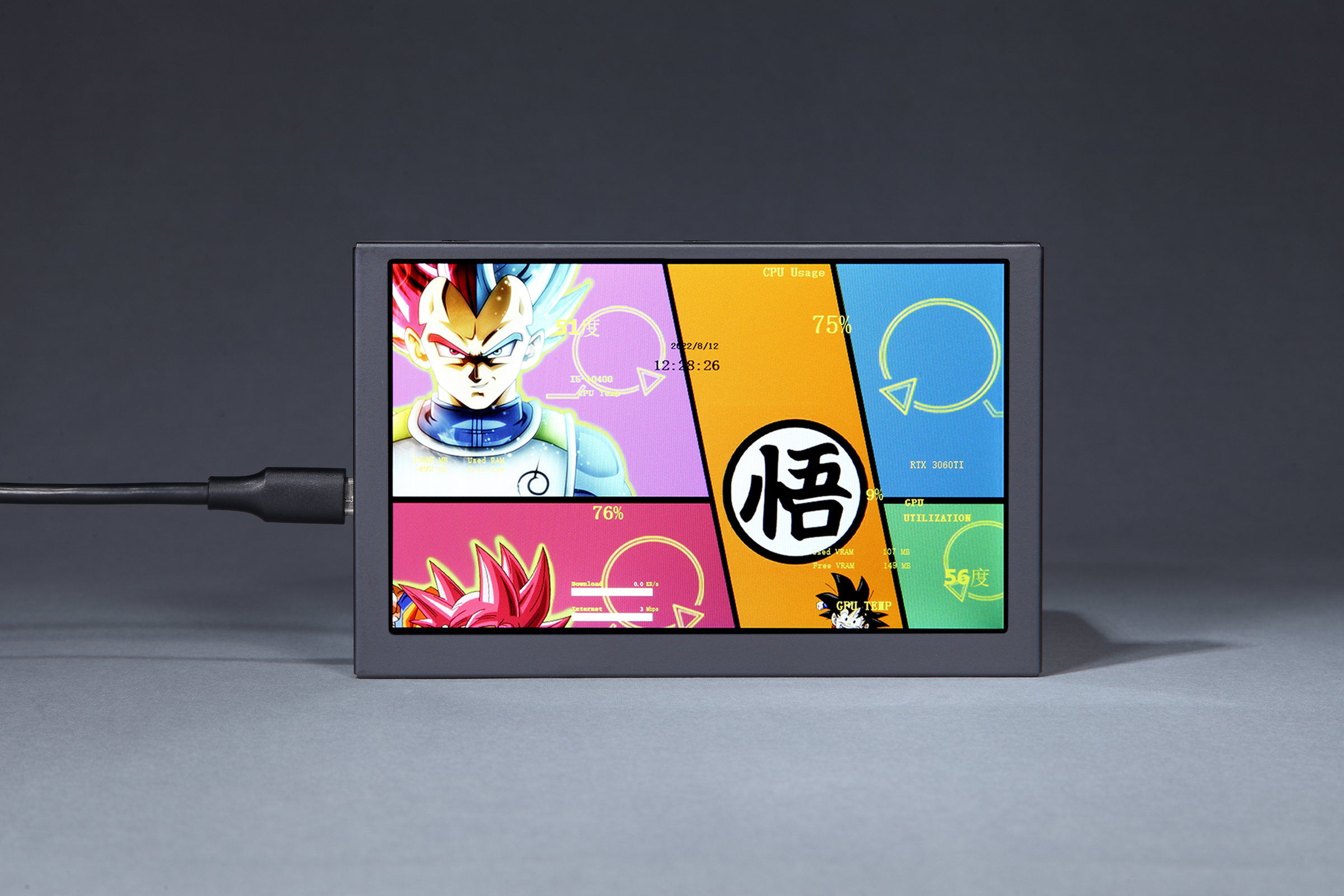

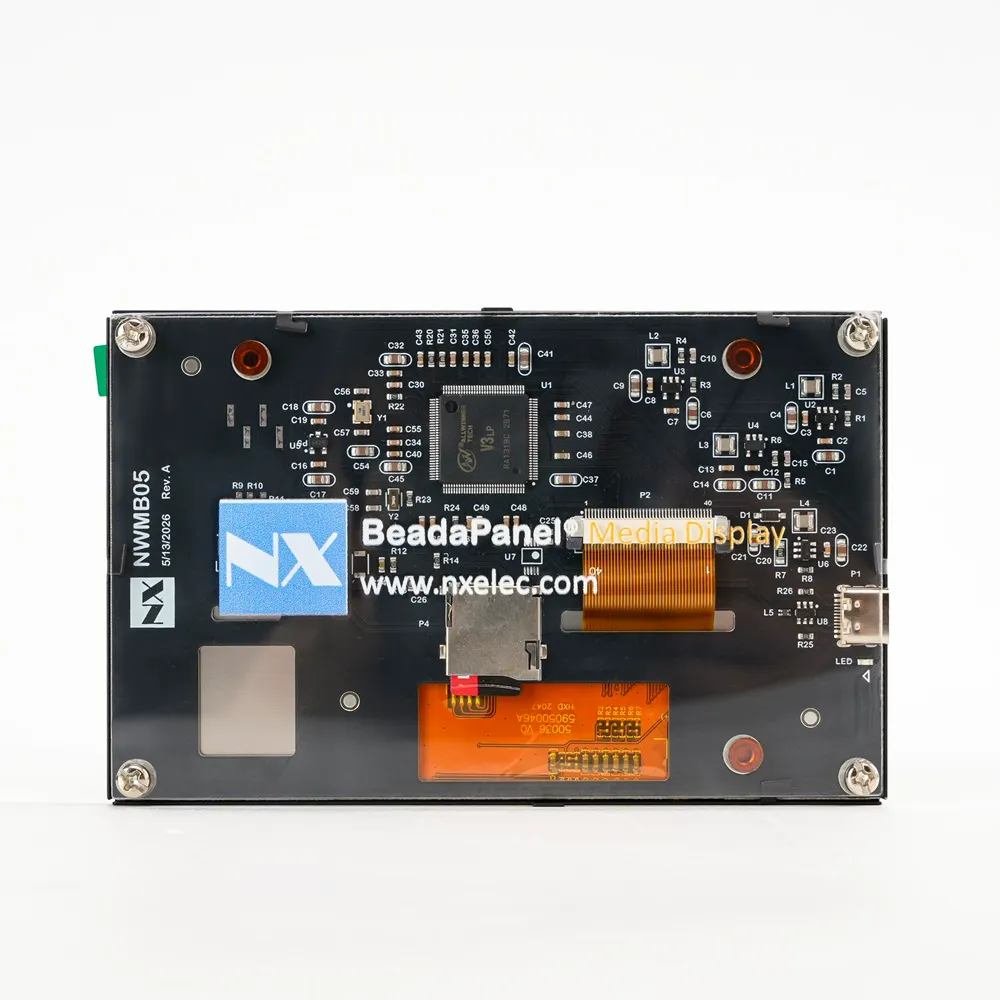

BeadaPanel 5" IPS LCD Display - USB Secondary Monitor - WinUSB SDK

$50.00
$0.00
Screen Type
Please select a screen type
Micro-USB Cable
Please select a micro-usb cable
Quantity
SKU: NDM05007
Weight: 250g

What is BeadaPanel?


BeadaPanel is a versatile media display. It can playback images and videos in various common format.

BeadaPanel comes with a 5" IPS LCD display with a resolution of 800x480.

BeadaPanel has up to 32GB TF Card memory for media storage and playback.

BeadaPanel supports USB 2.0 High Speed standard.

BeadaPanel consumes very low power and can be powered by a single Micro-USB cable.

Features

Model

BeadaPanel 5C

CPU

AllWinner Cortex-A7

RAM

64MB DDR2

Storage

32GB TF Card

Connectivities

1 x USB 2.0 OTG(Micro-USB)

Display

5.0" IPS LCD: 800x480

Dimension

121 x 76 x 11(mm)

Weight

120(g)

Consumption

5V/300mA

Communication Protocol

Panel-Link v1.0

Windows API

WinUSB

Supported Media Types

  • JPG, BMP, PNG, GIF, TIFF, etc
  • MP4, ASF, OGG, FLV, WebM, RMVB, MKV, avi, quicktime, H.263/264/265, MPEG-1, MPEG-2
  • RGB in various pack
  • YUV in various pack

BeadaPanel Selection Table

Model

Screen

FPS(*)

Touch

Consumption

Dimensions

BeadaPanel 3

3.5" 480x320 IPS

70

N/A

5V/250mA

98.5 x 70 x 10(mm)

BeadaPanel 4

4.3" 800x480 IPS

30

N/A

5V/280mA

116 x 78 x 22(mm)

BeadaPanel 5C

5" 800x480 IPS

15

N/A

5V/300mA

121 x 76 x 11(mm)

BeadaPanel 5

5" 800x480 IPS

30

N/A

5V/300mA

121 x 76 x 25(mm)

BeadaPanel 5P

5" 800x480 IPS

30

N/A

5V/300mA

126 x 85 x 15.5(mm)

BeadaPanel 6

6.8" 1280x480 IPS

20

N/A

5V/350mA

181 x 67 x 25(mm)

BeadaPanel 6P

6.8" 1280x480 IPS

20

N/A

5V/350mA

186 x 71 x 13.3(mm)

BeadaPanel 7

7" 800x480 TFT

30

Resistive

5V/350mA

188 x 118 x 35(mm)

* When receive and display raw RGB16 format video from USB port

Package List

  • 1 x BeadaPanel 5C
  • 1 x 1 Meter USB Type-A to Micro-USB cable(Optional)
  • Technical support will be provided by email and technical forum
  • Buyer will pay for shipping of mending return
  • Buyer will pay for material cost of mending after warranty period(1 year after purchasing)
  • Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer's responsibility
  • Please check with your country's customs office to determine what these additional costs will be in prior to your bidding/buying

1. How does this display show up on windows, is it a second display where my mouse can move over to it or is it completely locked and my mouse can't go to it?

Answer:Two use scenarios related:

A typical(default) scenario is customer plug the screen to PC and then Windows will recognize it as a WinUSB device. Many apps like AIDA64 can directly communicate with this device and render info/chart to. Your mouse will never be able to move over to it in this case. Second scenario, one can install a Windows graphics driver. With the driver installation, the screen will work as a Windows secondary monitor.

2. How to shutoff pre-loaded videos and backlight when PC going to sleep?

Answer:

BeadaPanel will go into photo frame mode if disconnect from AIDA64. In the mode it will automatically play media files preloadded in it's internal storage space. There is a so called software 'BeadaTools' for access of BeadaPanel internal storage. After running that tool, BeadaPanel will appear as a USB memory drive on your PC. You can load/delete those media files on the drive and further more, you can edit it's animation.ini file to configure behavior of photo frame function.

3. What are your shipping times for an order ?

Answer:

We provide estimated delivery times when you choose shipping services. For tracking number, since we use a local courier company for connected shipping, it will take 3-4 days after order for us to upload the tracking number(note these 3-4 days are included in estimated delivery time).
