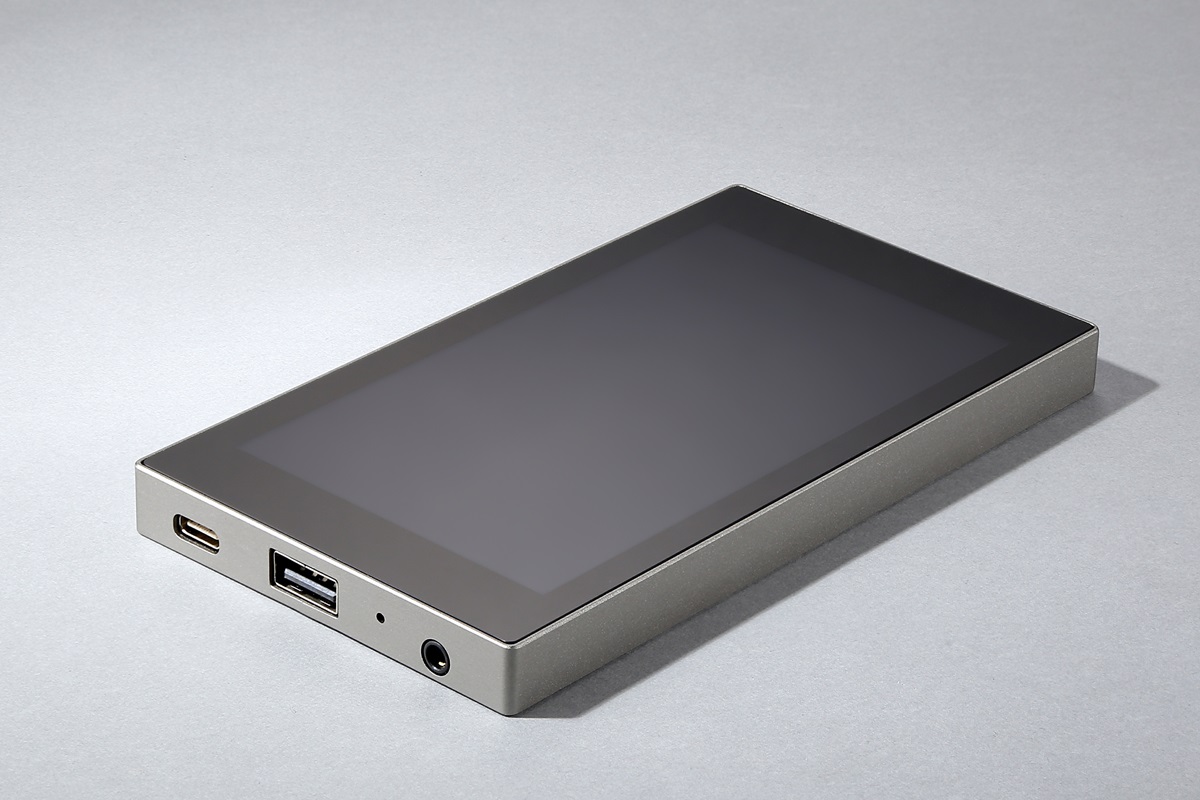

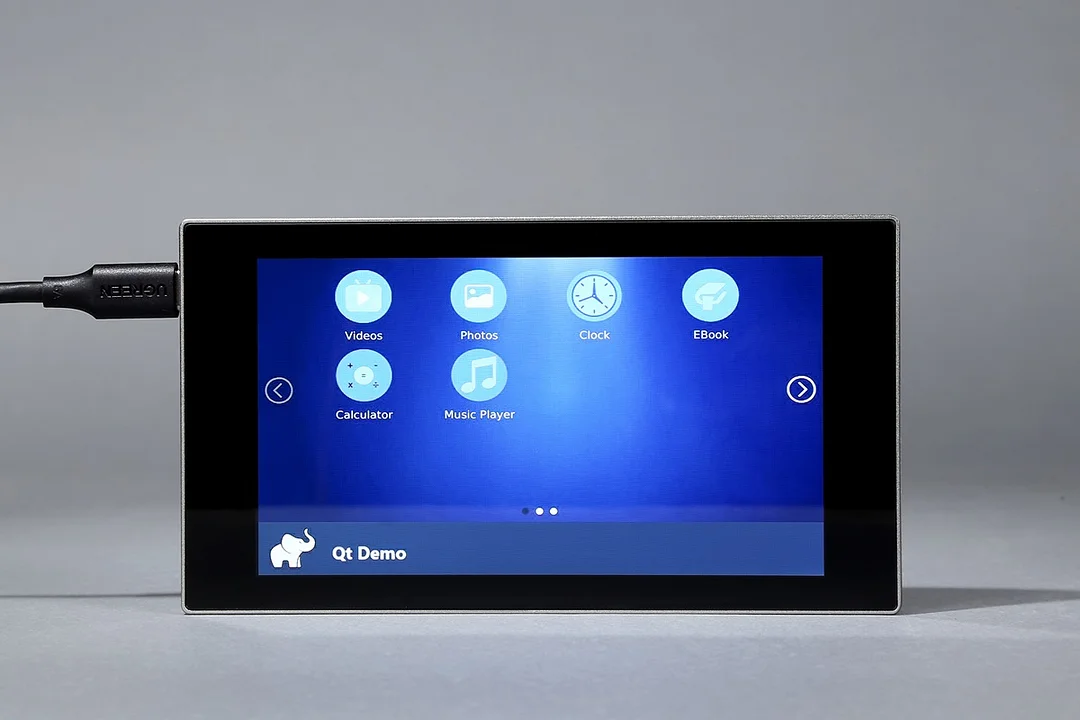

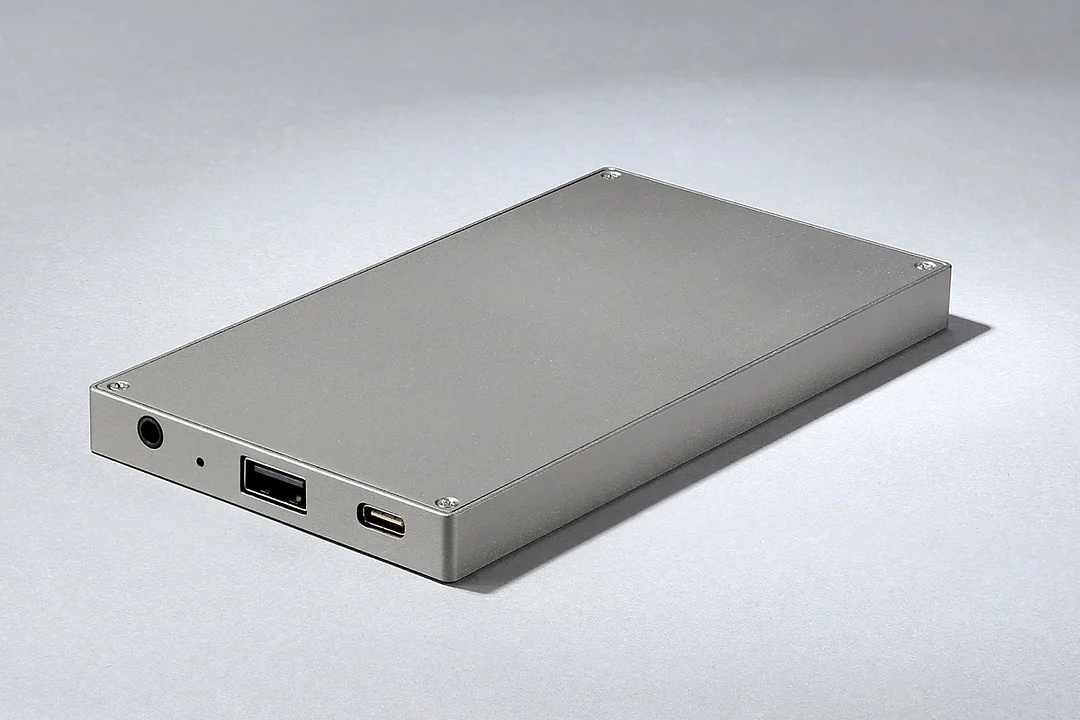

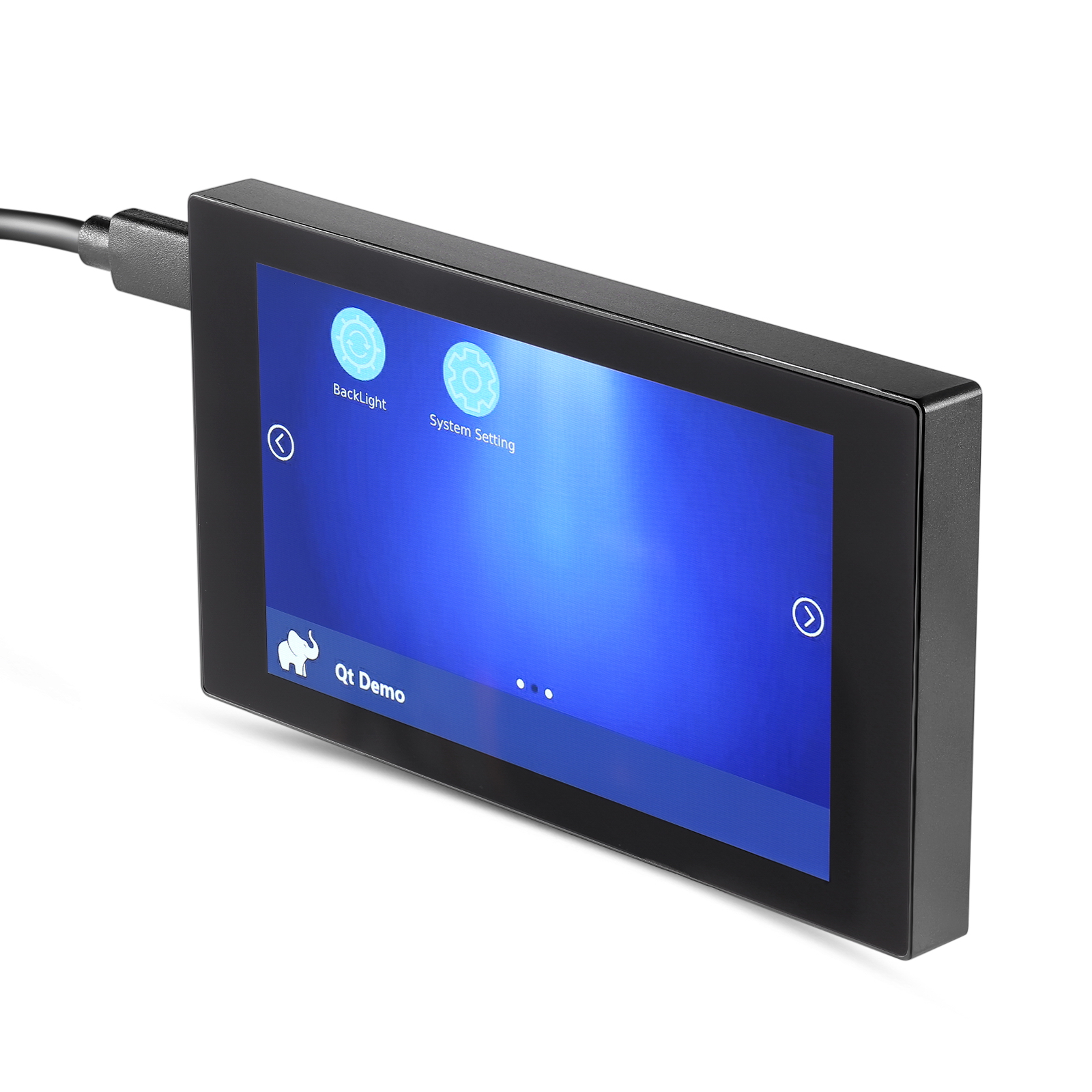

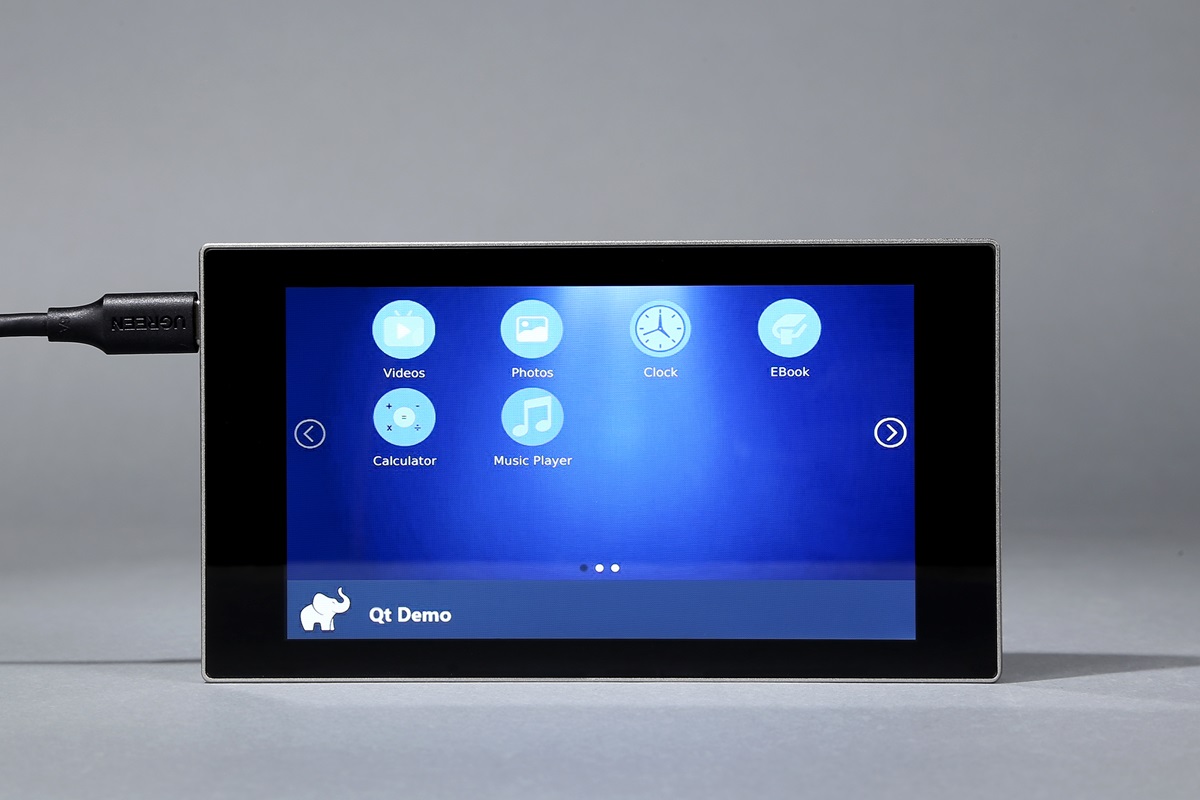

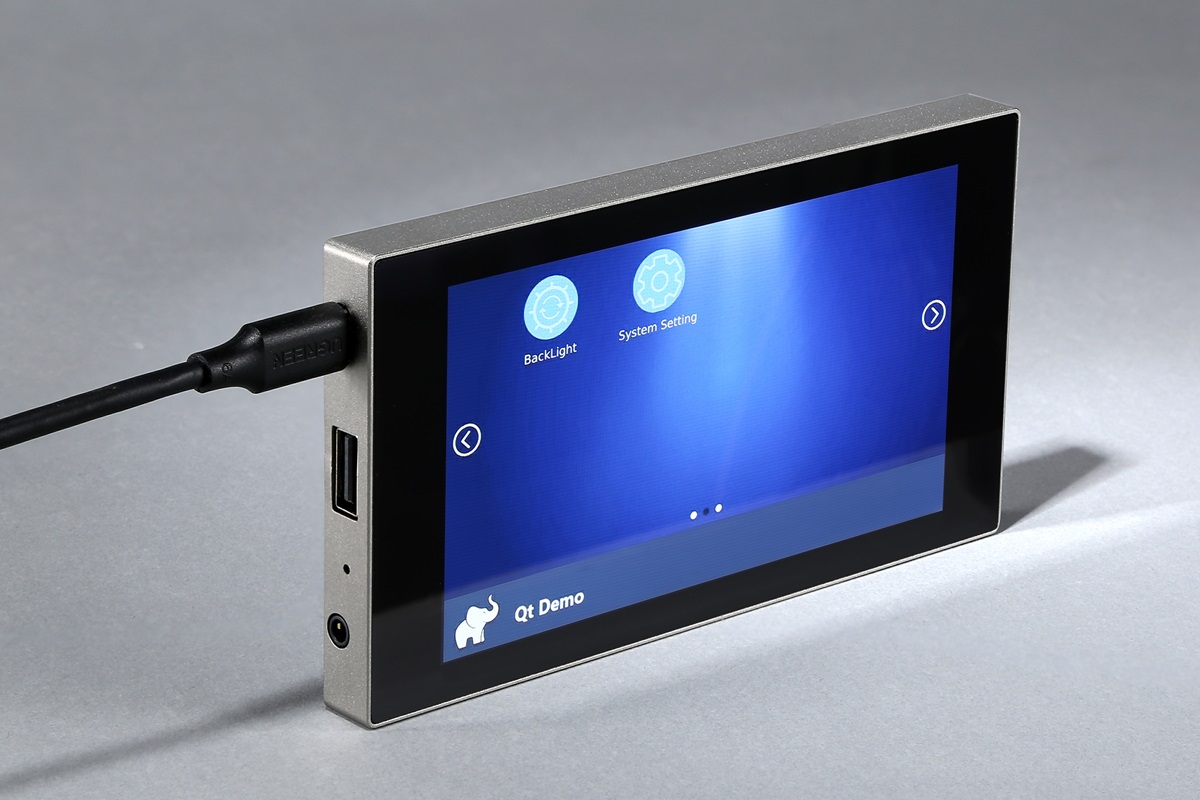

BeadaPanel 5" LCD Display - Capacitive Touch - USB Secondary Monitor

$83.00
$0.00
ColorGrey
Please select a color
Type-C Cable
Please select a type-c cable
Metal Dock
Please select a metal dock
Quantity
SKU: NDM05401
Weight: 394g

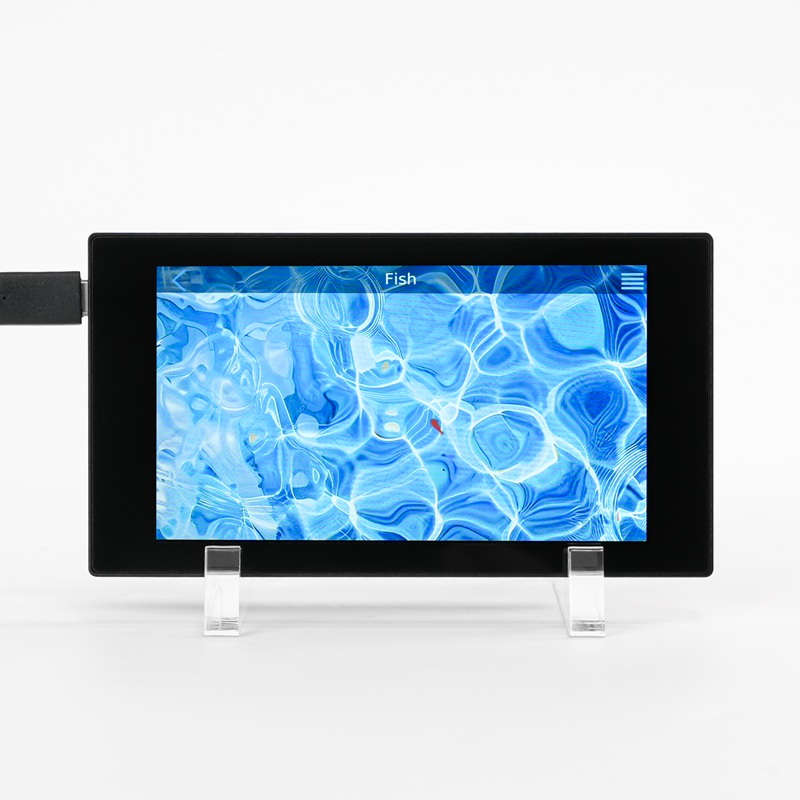

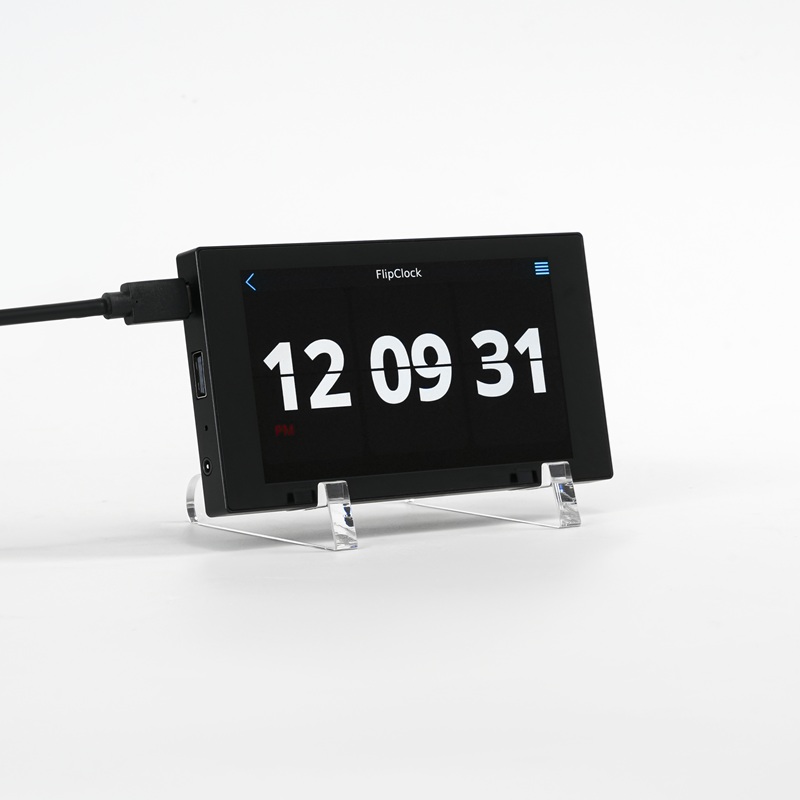

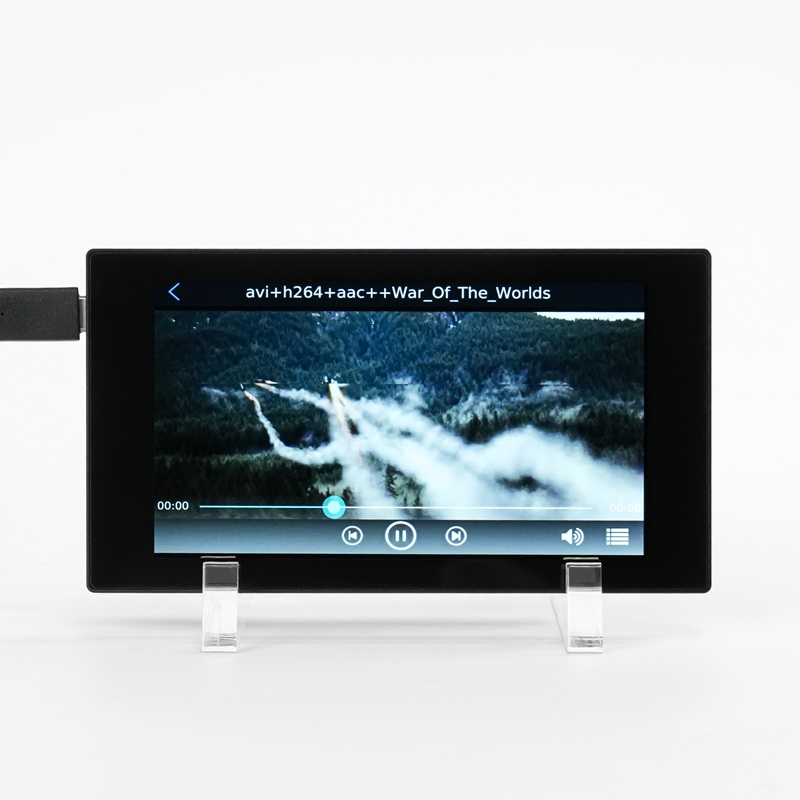

BeadaPanel 5S is the third generation product in BeadaPanel family. BeadaPanel 5S is a versatile media display. It can playback images and videos in various common format. It integrates with Elephant open source desktop application and multi-touch support. It consumes very low power and can be powered via a single USB Type-C cable.

Features

Model

BeadaPanel 5S

CPU

AllWinner ARM Cortex-A7

RAM

128MB DDR3

Storage

32GB TF Card

Connectivities

  • 1 x USB 2.0 Device(USB Type-C)
  • 1 x USB 2.0 Host(USB Type-A)

Audio Input

Mic

Audio Output

3.5mm Jack

Display

5.0" IPS LCD: 854x480 with capacitive touch screen

Dimension

139.5 x 77 x 11.5(mm)

Consumption

5V/300mA

Communication Protocol

Panel-Link v1.0

Windows API

WinUSB

Supported Media Types

  • JPG, BMP, PNG, GIF, TIFF, etc
  • MP4, ASF, OGG, FLV, WebM, RMVB, MKV, avi, quicktime, H.263/264/265, MPEG-1, MPEG-2
  • RGB in various pack
  • YUV in various pack

BeadaPanel Selection Table

Model

Screen

FPS*

Touch

Consumption

Case

Dimensions

BeadaPanel 2

2.1" 480x480 IPS

40

N/A

5V/130mA

Al CNC

73 x 73 x 9.7(mm)

BeadaPanel 2W

2.8" 480x480 IPS

40

N/A

5V/130mA

Al CNC

90.3 x 90.3 x 9.7(mm)

BeadaPanel 3

3.5" 480x320 IPS

70

N/A

5V/250mA

ABS Bezel

98.5 x 70 x 10(mm)

BeadaPanel 4

4.3" 800x480 IPS

30

N/A

5V/280mA

ABS Bezel

116 x 78 x 22(mm)

BeadaPanel 5C

5" 800x480 IPS

15

N/A

5V/300mA

Sheet metal bezel

121 x 76 x 11(mm)

BeadaPanel 5

5" 800x480 IPS

30

N/A

5V/300mA

Sheet metal bezel

121 x 76 x 25(mm)

BeadaPanel 5P

5" 800x480 IPS

30

N/A

5V/300mA

Al CNC

126 x 85 x 15.5(mm)

BeadaPanel 5S

5" 854x480 IPS

30

Capacitive

5V/300mA

Al CNC

139.5 x 77 x 11.5(mm)

BeadaPanel 6

6.8" 1280x480 IPS

20

N/A

5V/350mA

N/A

181 x 67 x 25(mm)

BeadaPanel 6P

6.8" 1280x480 IPS

20

N/A

5V/350mA

Al CNC

186 x 71 x 13.3(mm)

BeadaPanel 7

7" 800x480 TFT

30

Resistive

5V/350mA

ABS Bezel

188 x 118 x 35(mm)

* When receive and display raw RGB16 format video from USB port

Package List

  • 1 x BeadaPanel 5S
  • 1 x 1.5 Meters USB Type-A to Type-C cable(Optional)

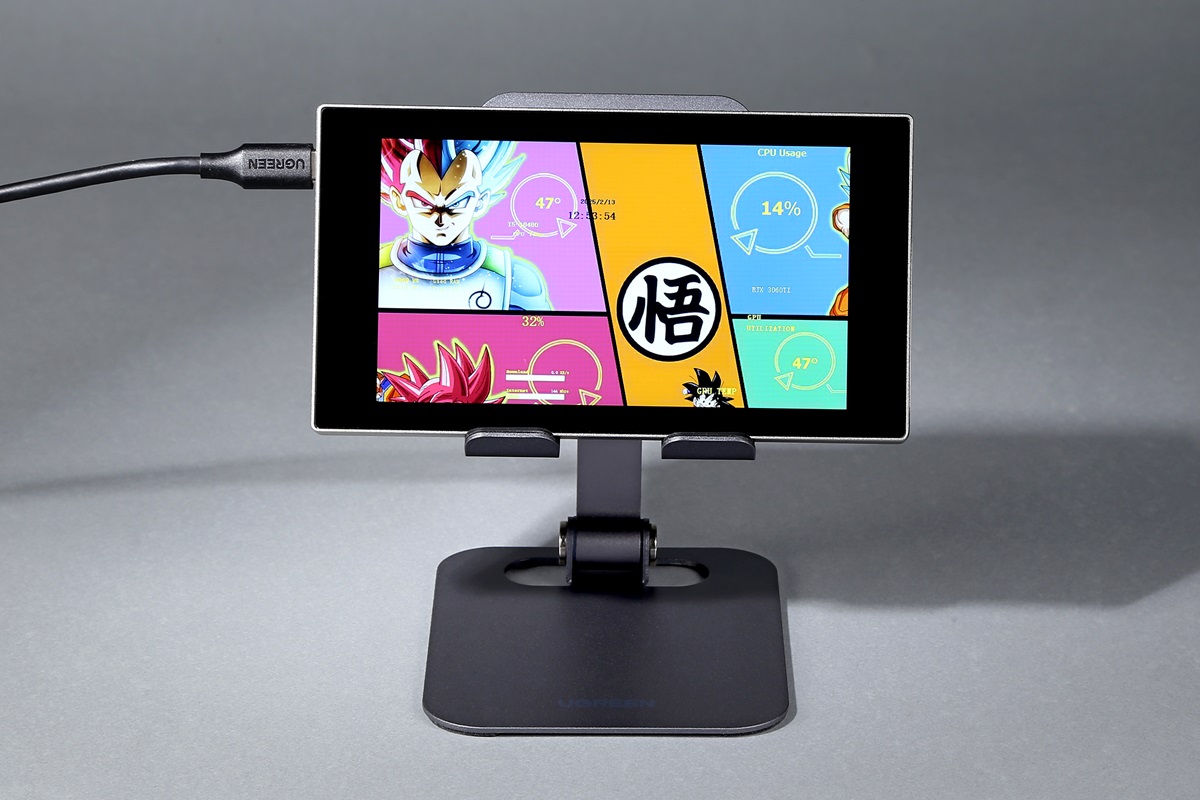

  • 1 x Metal Dock(Optional)
  • Technical support will be provided by email and technical forum
  • Buyer will pay for shipping of mending return
  • Buyer will pay for material cost of mending after warranty period(1 year after purchasing)
  • Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer's responsibility
  • Please check with your country's customs office to determine what these additional costs will be in prior to your bidding/buying

1. How does this display show up on windows, is it a second display where my mouse can move over to it or is it completely locked and my mouse can't go to it?

Answer:Two use scenarios related:

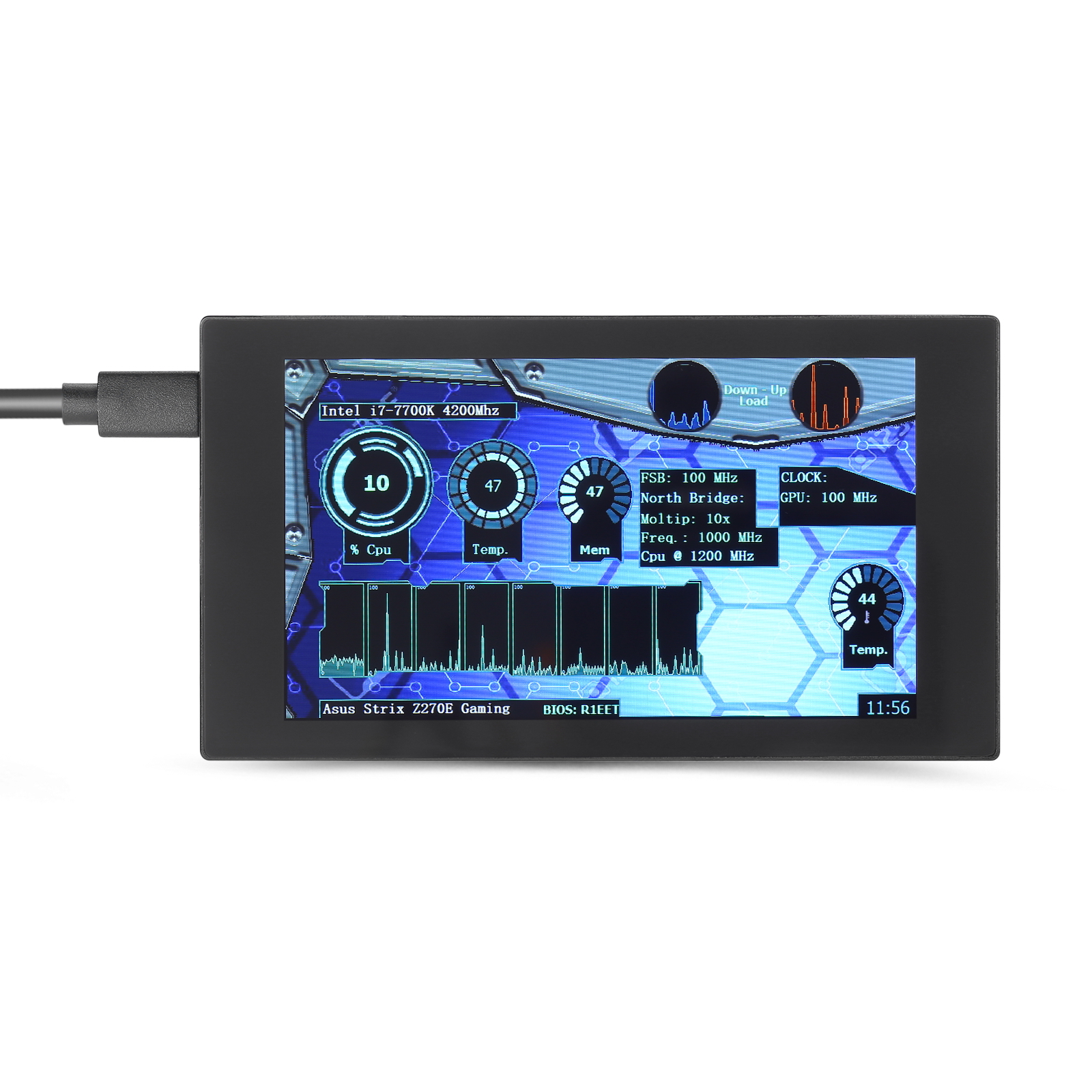

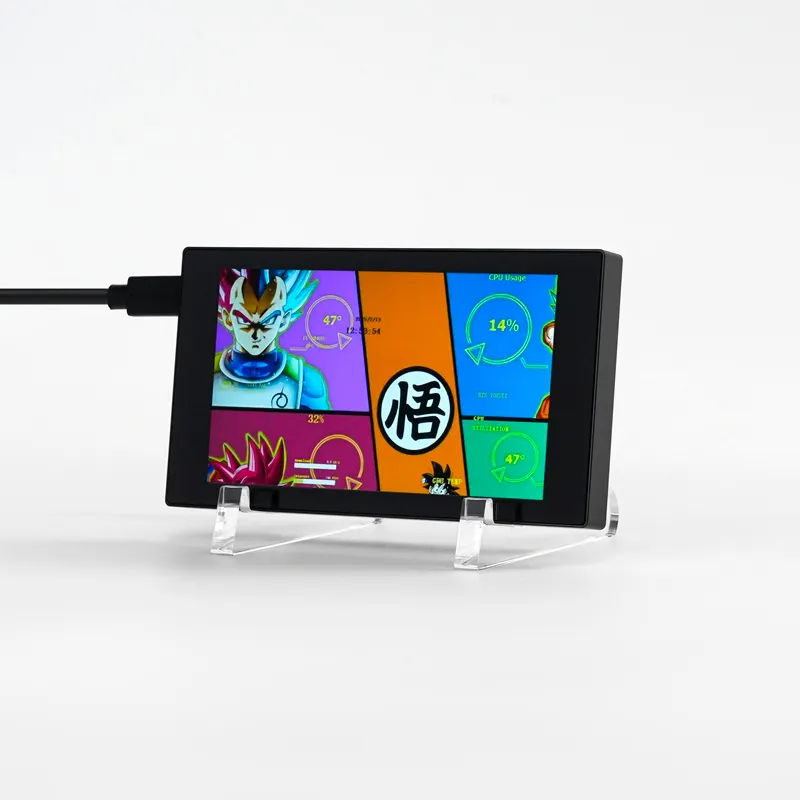

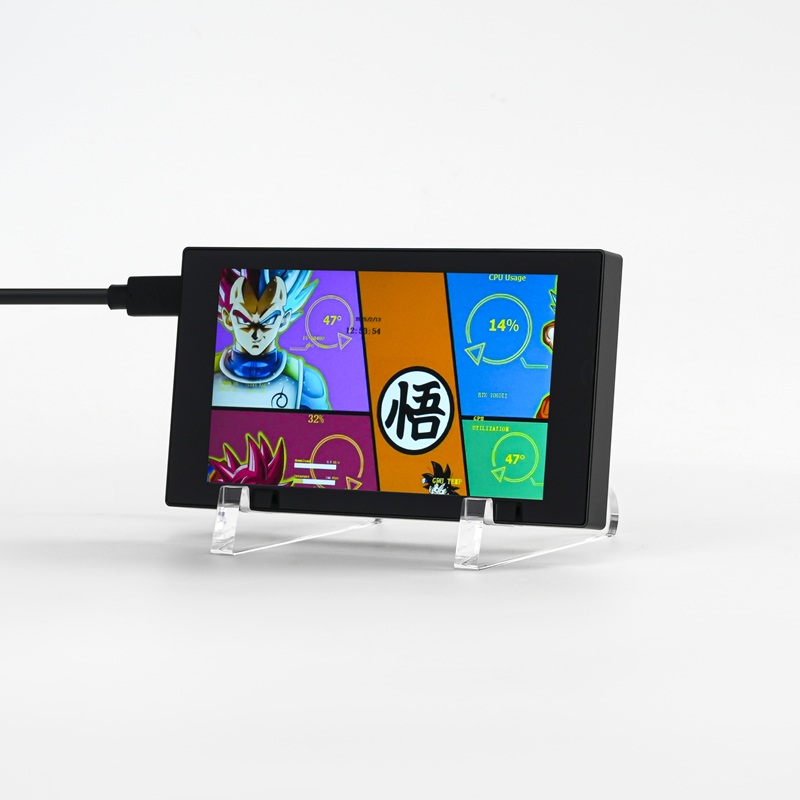

A typical(default) scenario is customer plug the screen to PC and then Windows will recognize it as a WinUSB device. Many apps like AIDA64 can directly communicate with this device and render info/chart to. Your mouse will never be able to move over to it in this case. Second scenario, one can install a Windows graphics driver. With the driver installation, the screen will work as a Windows secondary monitor.

2. How to shutoff pre-loaded videos and backlight when PC going to sleep?

Answer:

BeadaPanel will go into photo frame mode if disconnect from AIDA64. In the mode it will automatically play media files preloadded in it's internal storage space. There is a so called software 'BeadaTools' for access of BeadaPanel internal storage. After running that tool, BeadaPanel will appear as a USB memory drive on your PC. You can load/delete those media files on the drive and further more, you can edit it's animation.ini file to configure behavior of photo frame function.

3. What are your shipping times for an order ?

Answer:

We provide estimated delivery times when you choose shipping services. For tracking number, since we use a local courier company for connected shipping, it will take 3-4 days after order for us to upload the tracking number(note these 3-4 days are included in estimated delivery time).
