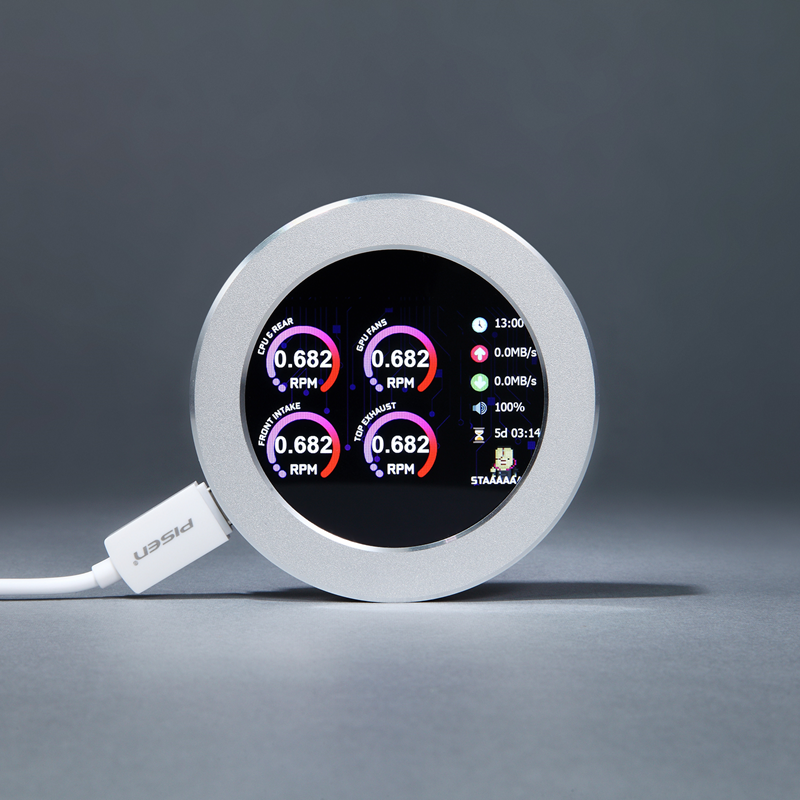

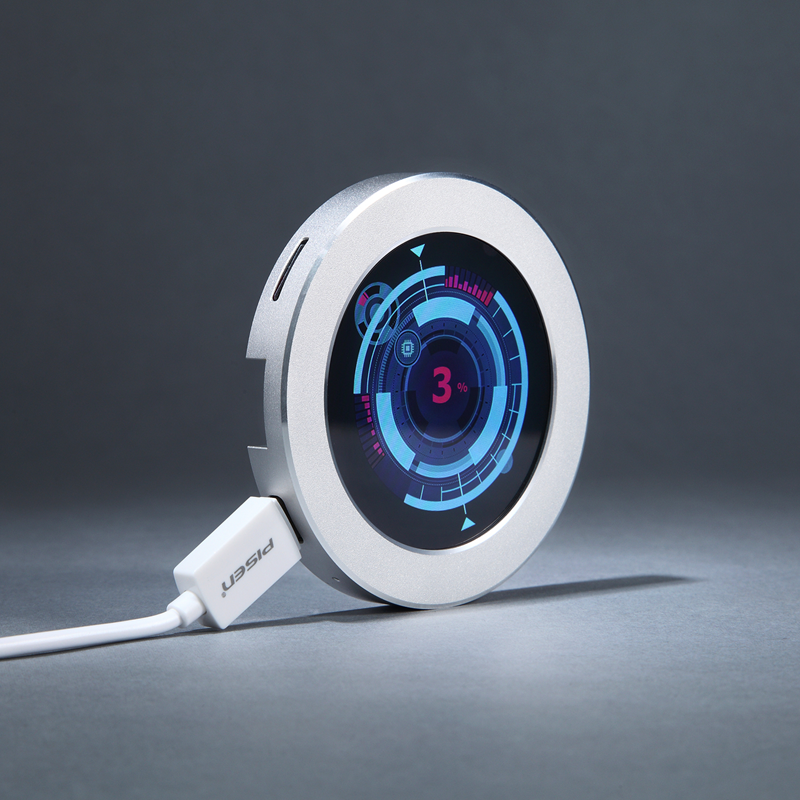

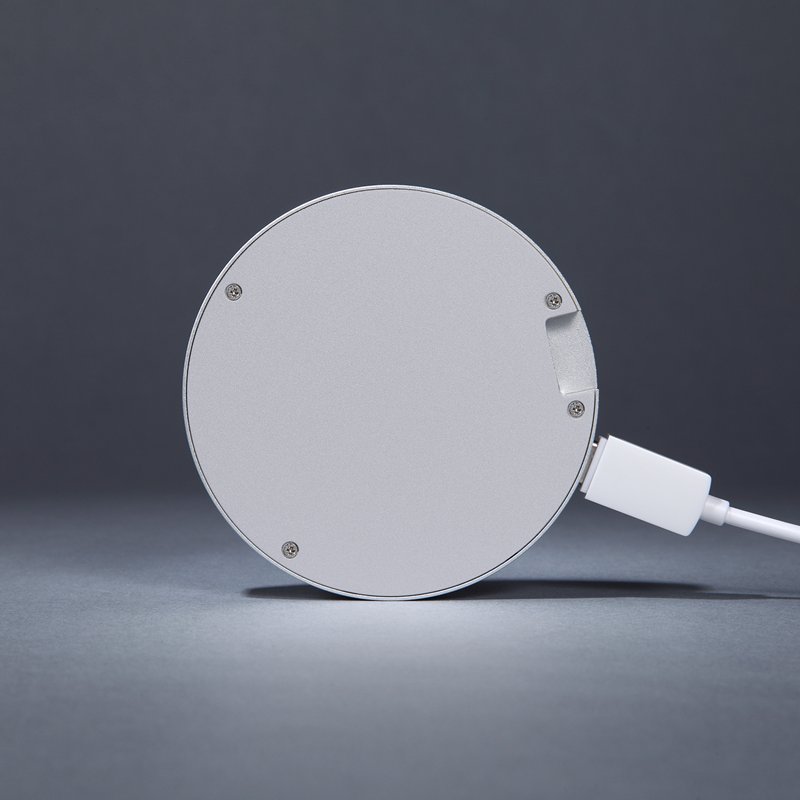

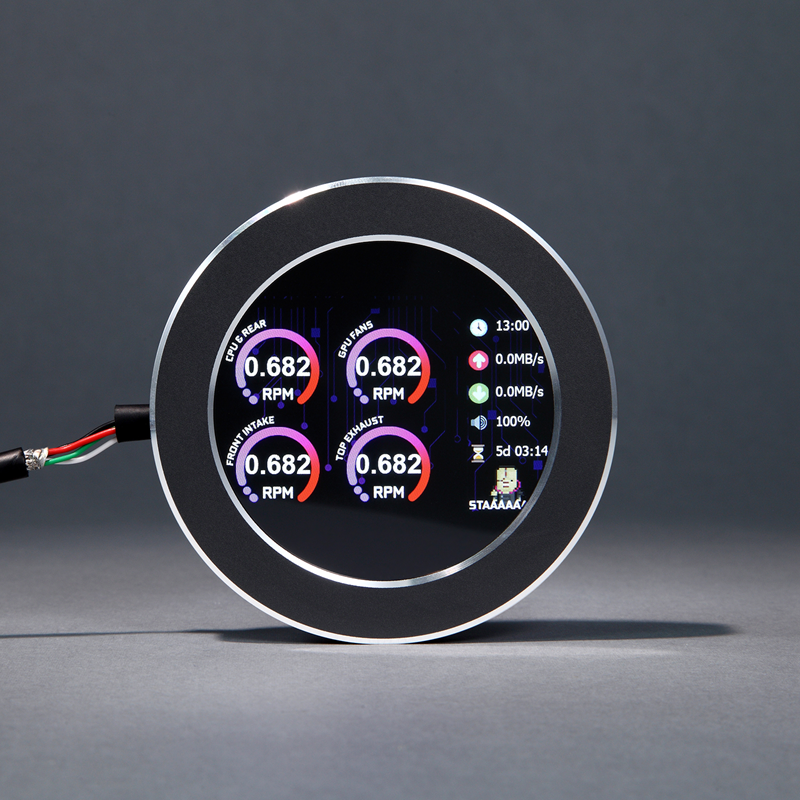

BeadaPanel 2.1" Round LCD Display - USB Secondary Monitor - CNC Aluminium Case

$45.00
$45.00
Case Color
Please select a case color
Quantity
SKU: NDM02101
Weight: 330g

What is BeadaPanel?


BeadaPanel is a versatile media display. It can playback images and videos in various common format.

BeadaPanel comes with a 2.1" IPS round LCD display with a resolution of 480x480.

BeadaPanel has up to 32GB TF card for media storage and playback.

BeadaPanel supports USB 2.0 High Speed standard.

BeadaPanel consumes very low power and can be powered by a single USB cable.

Features

Model

BeadaPanel 2

CPU

AllWinner ARM Cortex-A7

RAM

128MB DDR3

Storage

32GB TF Card

Connectivities

1 x USB 2.0 OTG(USB Type-C or 4Pin MX1.25)

Display

2.1" IPS LCD: 480x480

Dimension

Φ73 x 9.7(mm)

Weight

60(g)

Consumption

5V/130mA

Communication Protocol

Panel-Link v1.0

Windows API

WinUSB

Supported Media Types
  • JPG, BMP, PNG, GIF, TIFF, etc
  • MP4, ASF, OGG, FLV, WebM, RMVB, MKV, avi, quicktime, H.263/264/265, MPEG-1, MPEG-2
  • RGB in various pack
  • YUV in various pack

BeadaPanel Selection Table

Model

Screen

FPS(*)

Touch

Consumption

Dimensions
BeadaPanel 2

2.1" 480x480 IPS

40

N/A

5V/130mA

Φ73 x 9.7(mm)
BeadaPanel 2W

2.8" 480x480 IPS

40

N/A

5V/130mA

Φ90.3 x 9.7(mm)
BeadaPanel 3

3.5" 480x320 IPS

70

N/A

5V/250mA

98.5 x 70 x 10(mm)
BeadaPanel 4

4.3" 800x480 IPS

30

N/A

5V/280mA

116 x 78 x 22(mm)
BeadaPanel 5C

5" 800x480 IPS

15

N/A

5V/300mA

121 x 76 x 11(mm)
BeadaPanel 5

5" 800x480 IPS

30

N/A

5V/300mA

121 x 76 x 25(mm)
BeadaPanel 5P

5" 800x480 IPS

30

N/A

5V/300mA

126 x 85 x 15.5(mm)
BeadaPanel 6

6.8" 1280x480 IPS

20

N/A

5V/350mA

181 x 67 x 25(mm)
BeadaPanel 6P

6.8" 1280x480 IPS

20

N/A

5V/350mA

186 x 71 x 13.3(mm)
BeadaPanel 7

7" 800x480 TFT

30

Resistive

5V/350mA

188 x 118 x 35(mm)

* When receive and display raw RGB16 format video from USB port

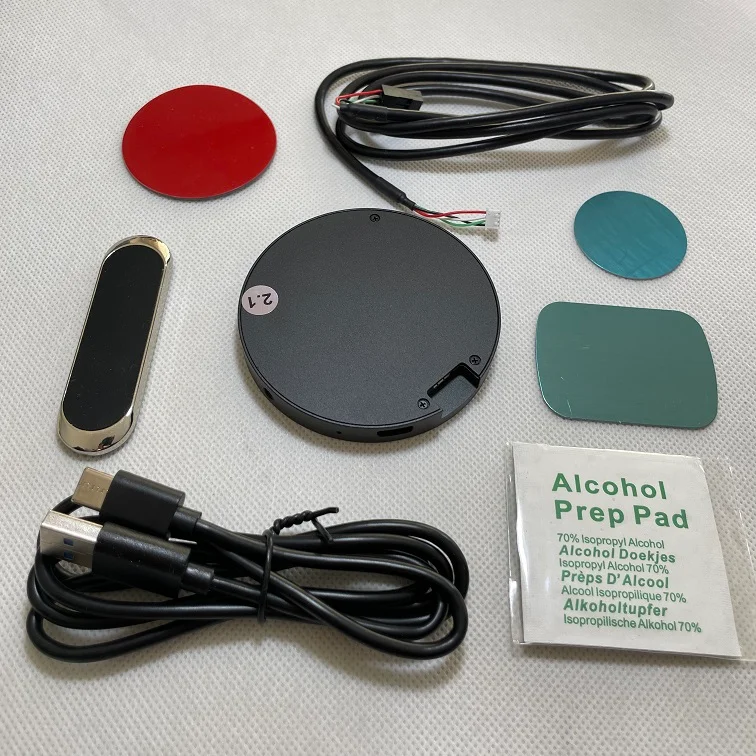

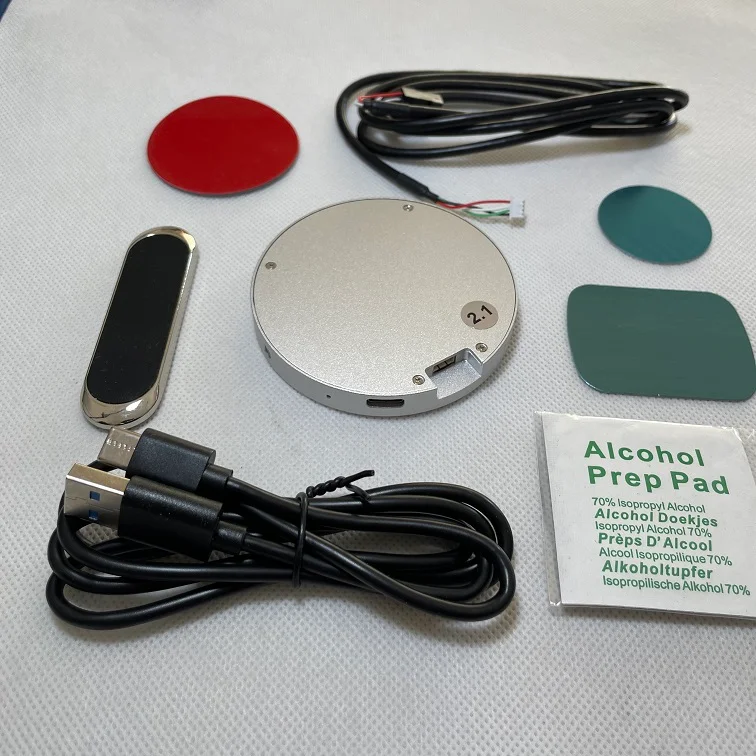

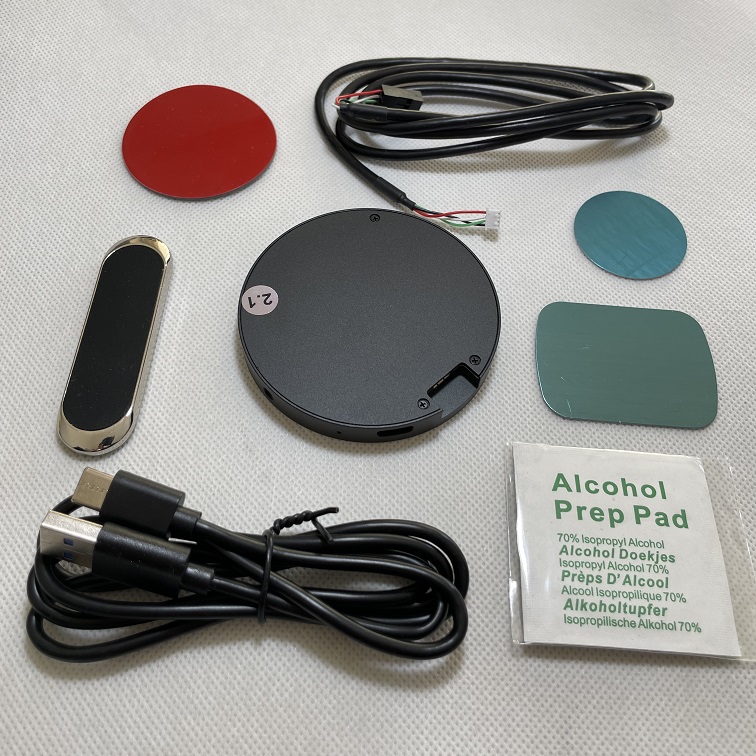

Package List

  • 1 x BeadaPanel 2
  • 1 x 1 Meter USB Type-A to USB Type-C cable
  • 1 x 1 Meter 9Pin 2.54mm Dupont female to 4Pin MX1.25 female cable
  • 1 x 70mm x 20mm Magnetic mount holder
  • 1 x Φ50 mm double side tape
  • Technical support will be provided by email and technical forum
  • Buyer will pay for shipping of mending return
  • Buyer will pay for material cost of mending after warranty period(1 year after purchasing)
  • Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer's responsibility
  • Please check with your country's customs office to determine what these additional costs will be in prior to your bidding/buying

1. How does this display show up on windows, is it a second display where my mouse can move over to it or is it completely locked and my mouse can't go to it?

Answer:Two use scenarios related:

A typical(default) scenario is customer plug the screen to PC and then Windows will recognize it as a WinUSB device. Many apps like AIDA64 can directly communicate with this device and render info/chart to. Your mouse will never be able to move over to it in this case. Second scenario, one can install a Windows graphics driver. With the driver installation, the screen will work as a Windows secondary monitor.

2. How to shutoff pre-loaded videos and backlight when PC going to sleep?

Answer:

BeadaPanel will go into photo frame mode if disconnect from AIDA64. In the mode it will automatically play media files preloadded in it's internal storage space. There is a so called software 'BeadaTools' for access of BeadaPanel internal storage. After running that tool, BeadaPanel will appear as a USB memory drive on your PC. You can load/delete those media files on the drive and further more, you can edit it's animation.ini file to configure behavior of photo frame function.
